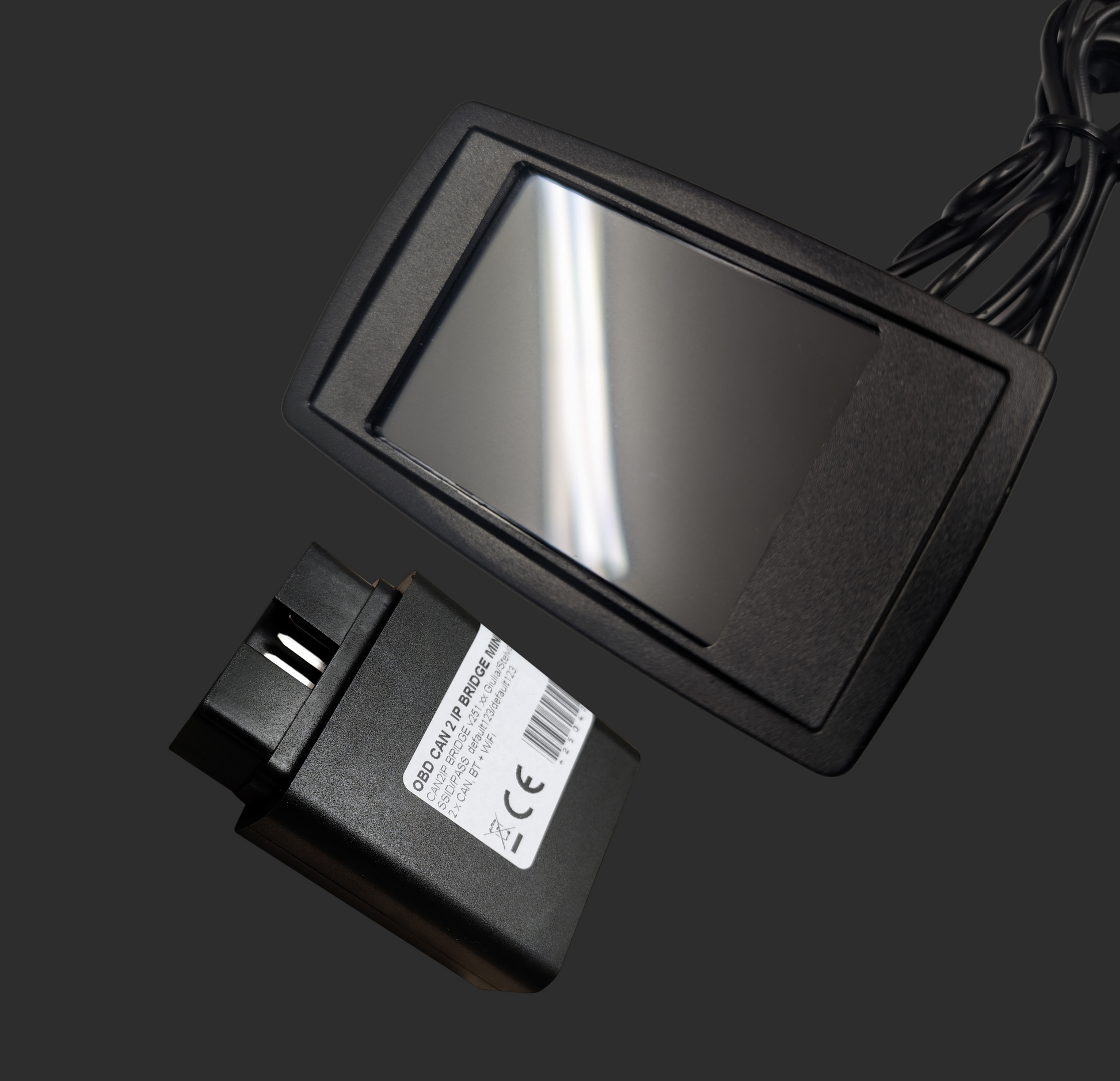

CAN2IP bridge MINI EXT 2.8" TFT
CAN2IP bridge MINI EXT 2.8" TFT
Couldn't load pickup availability
UPGRADE - V1 TO V2
UPGRADE - V1 TO V2
Here you can purchase an upgrade for all previous versions from version V1 to V2.
Previous versions: LITE - PRO - PRO MINI
UPGRADE - V1 TO V2
FREE DHL DELIVERY ABOVE 249€
FREE DHL DELIVERY ABOVE 249€
If the total price is 249€ or higher.
Then the delivery is free and sent by DHL Express the next working day.
SHIPPING
SHIPPING
DHL Express - 17€
Average delivery time 2 - 4 working days for countries within the EU
--------------------------------------------------------------------------
GLS - 5€
Average delivery time 5 - 12 working days for countries within the EU
--------------------------------------------------------------------------
- If you place your order on a working day by 1:00 PM from Monday to Friday, the order will be shipped the next day. If you order after 1:00 PM, the package will be shipped the day after tomorrow.
- All orders placed on non-working days or holidays are shipped the next working day.
- Shipment status and tracking numbers are sent immediately when the courier picks up the package.
IMPORTANT INFORMATION BEFORE USING THE DEVICE
IMPORTANT INFORMATION BEFORE USING THE DEVICE
NOTE: CAN2IP bridge device does not work if SGW is installed in the car! In this case, you can install SGW bypass.
Does my car have SGW?
- All cars manufactured after 02/2018 should have SGW installed
Additional functionality for CAN2IP bridge MINI

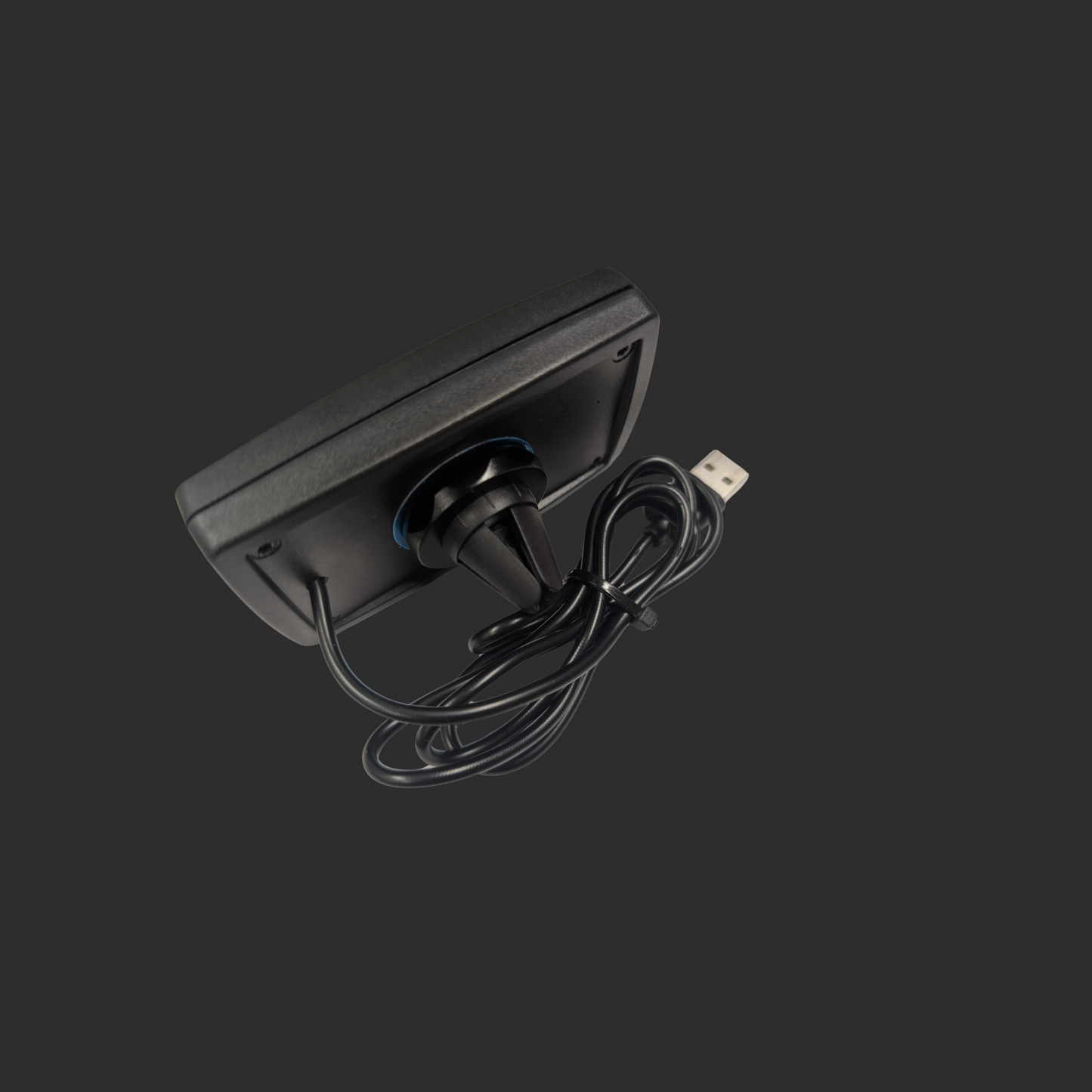

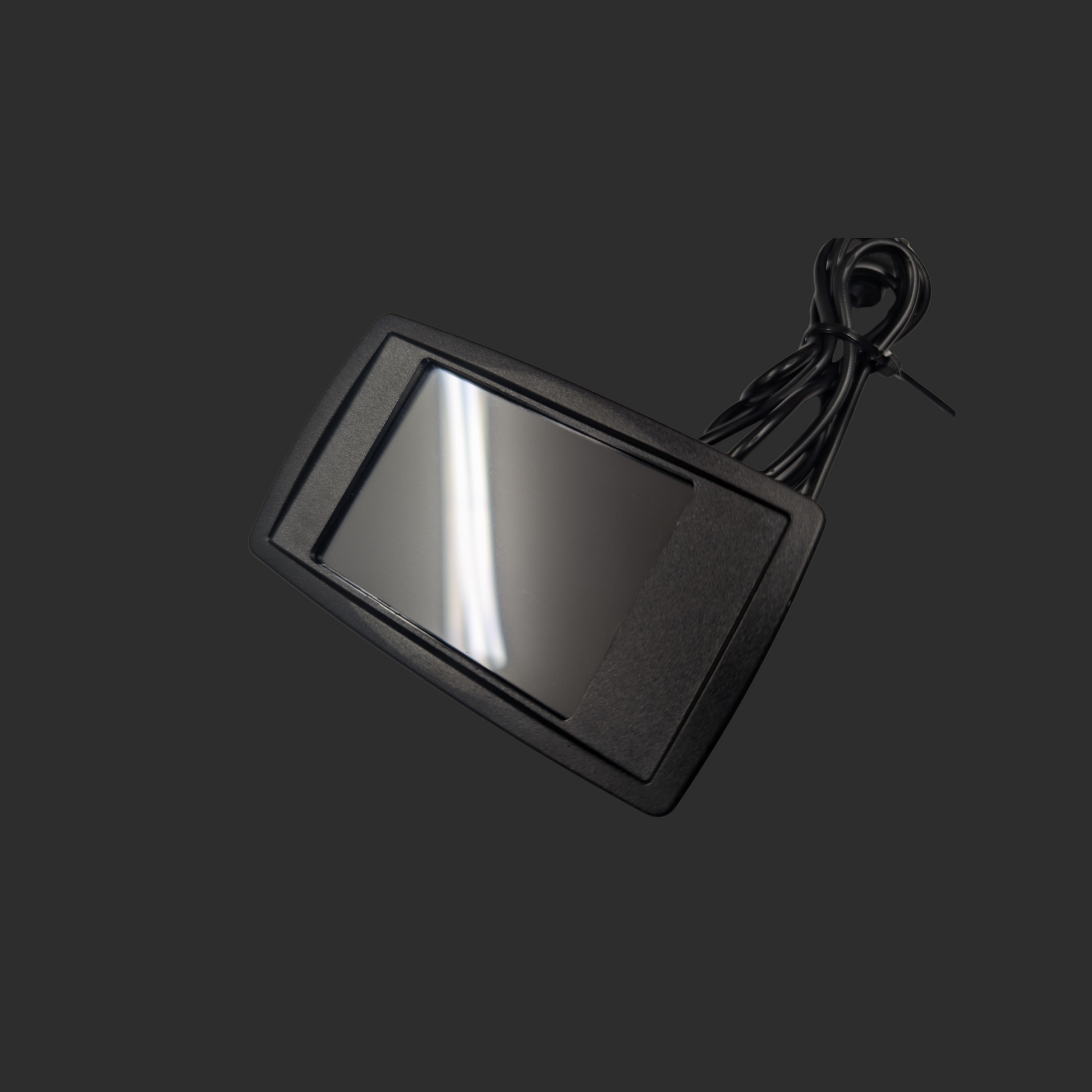

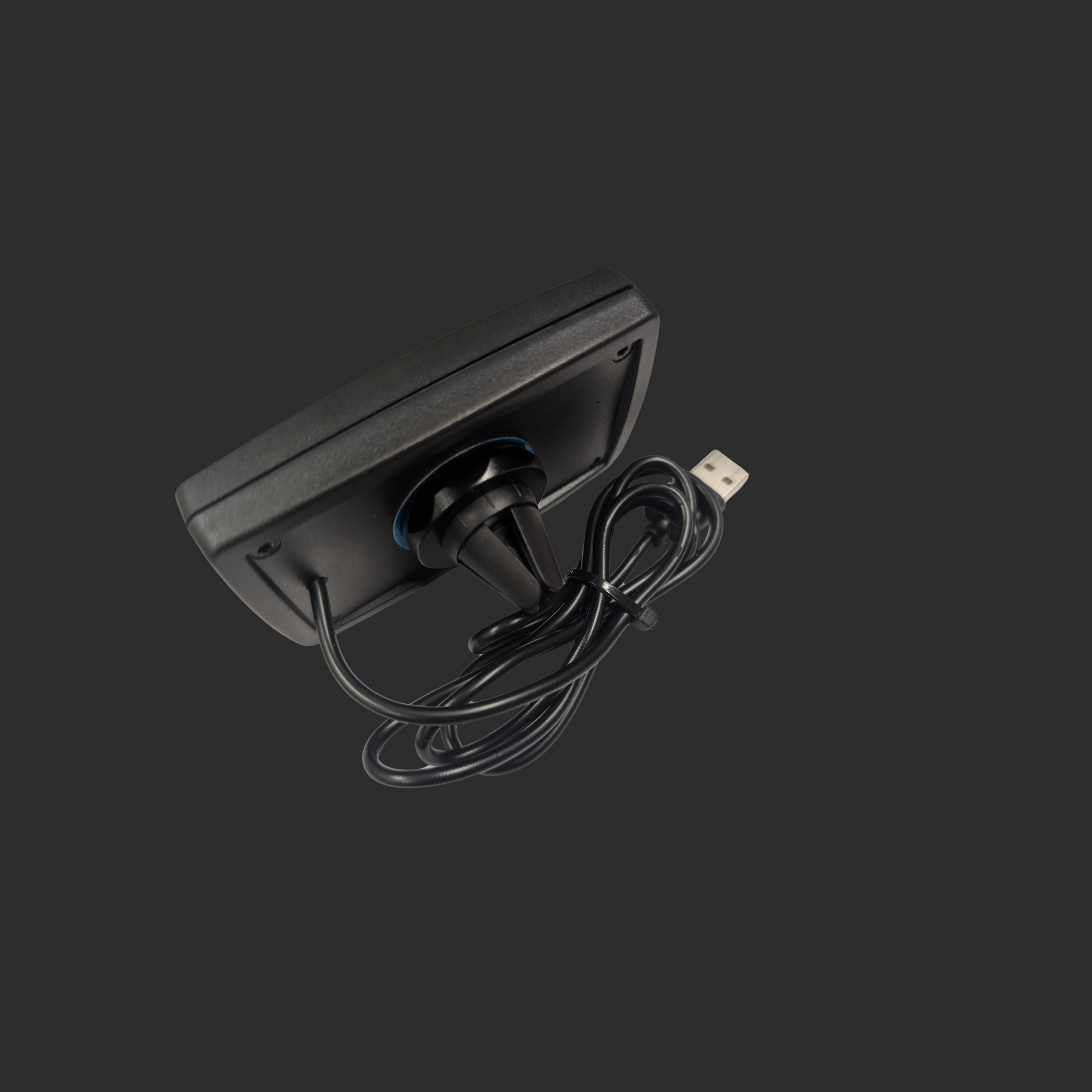

-the possibility of connecting an additional external 2.8" TFT screen via BlueTooth communication
- the possibility of connecting any other device via BlueTooth communication (useful if you want to create your own interface, application or DataLogger)
* CAN2IP bridge PRO MINI continuously sends data to any external BT device using ASCII SeralStream.
----------------------------------------------------------------------------

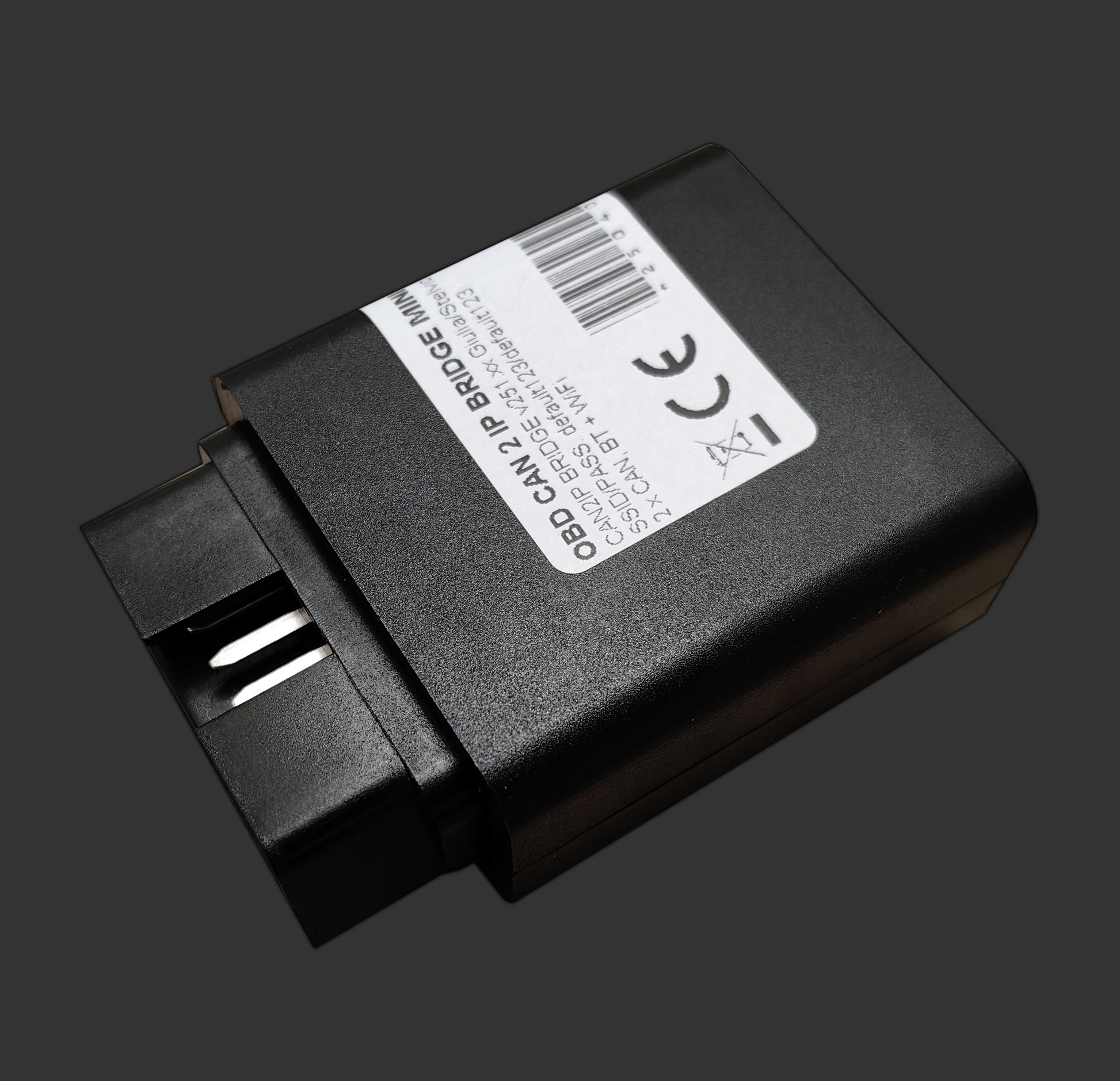

CAN2IP bridge PRO MINI
- ABS max DC input voltage 36.3V
- DC input voltage 10-16V
- OBD 12V DC pin reading tolerance <=2%
- DC Current (with BT) <=100mA (@12VDC input voltage)
- DC Current (without BT) 55-65mA (@12VDC input voltage)
- DC Current (sleep mode) <=15mA (@12VDC input voltage)
- Dimensions 65x48x24mm
----------------------------------------------------------------------------
- engine oil temperature [°C]
- engine oil pressure [bar]
- engine coolant temperature [°C]
- DPF status - clogging [%]
- DPF status - regeneration [%]
- DPF temperature [°C]
- TURBO temperature [°C]
- AT8 gearbox oil temperature [°C]
- engine oil degradation [%]
- turbo boost [bar]
- turbo boost bar graph
- torque (real torque at AT8) [Nm]
- accelerator pedal position [%]
- AT8 mode: P/D/M - AT8 gear: R/N/1/2/3/4/5/6/7/8
- cabin temperature [°C]
- engine speed [rpm]
- SCR LVL [%]
- IBS BAT [%]
- battery voltage [V]
- battery voltage OBD [V]
----------------------------------------------------------------------------
