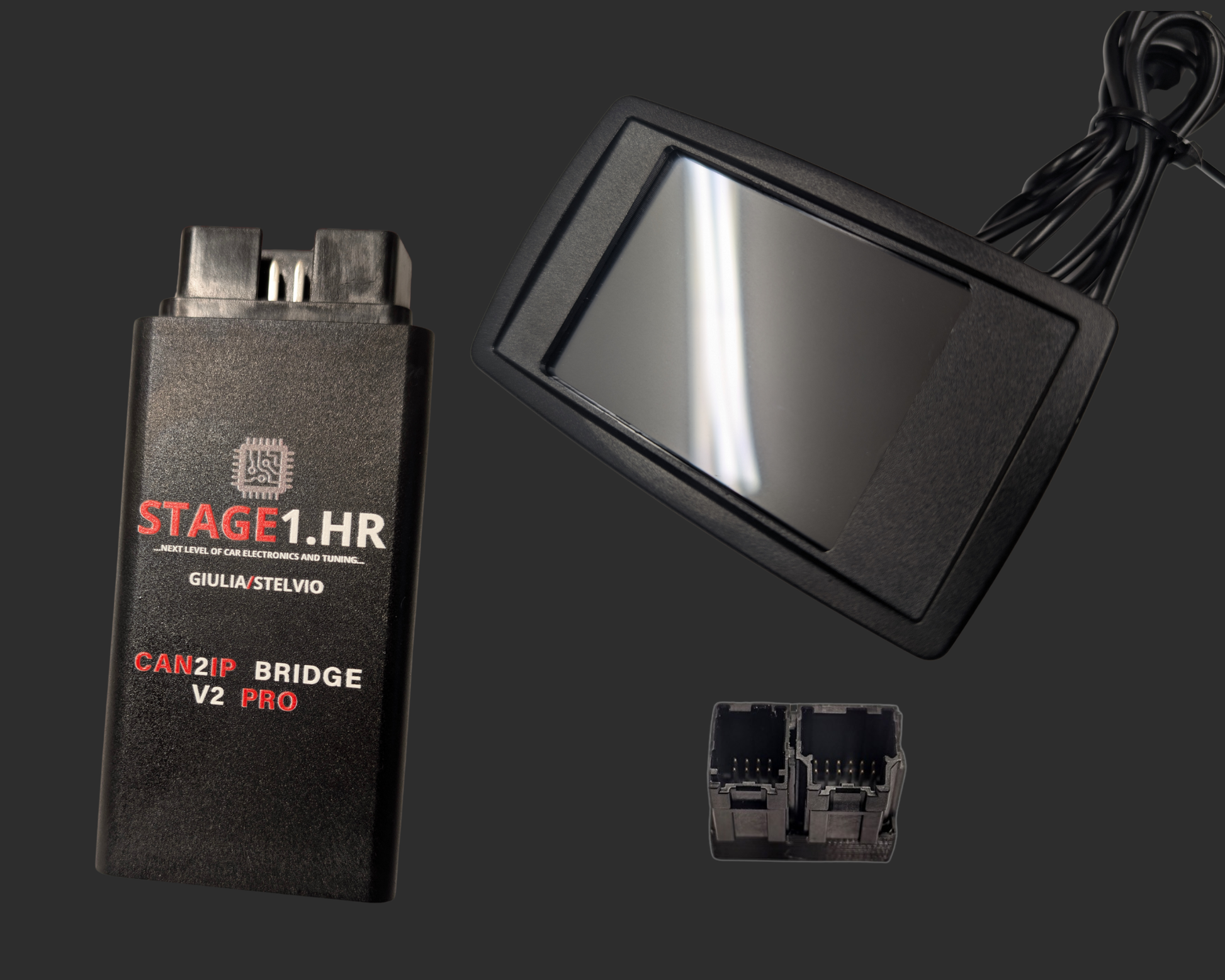

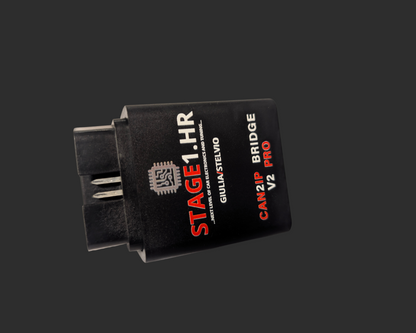

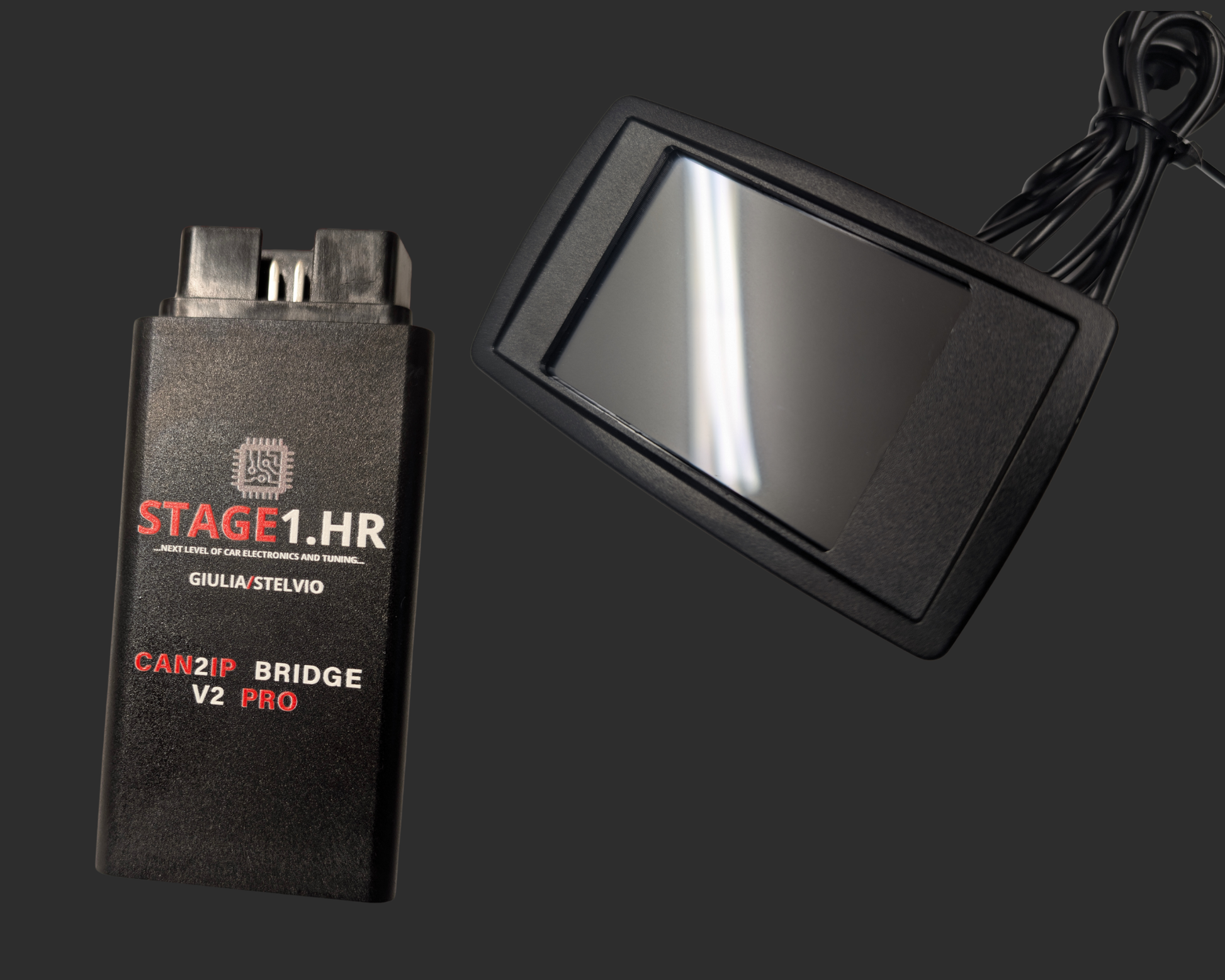

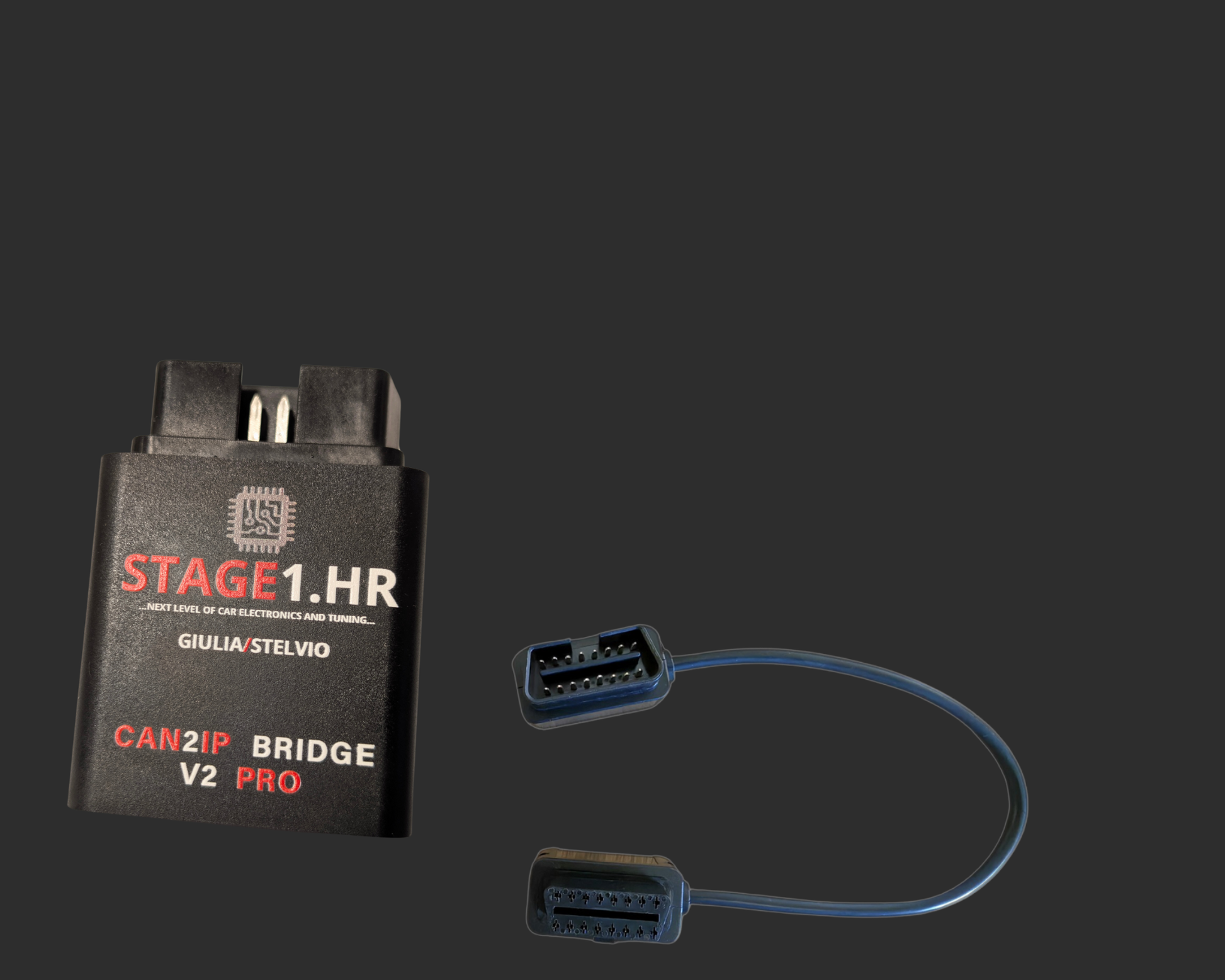

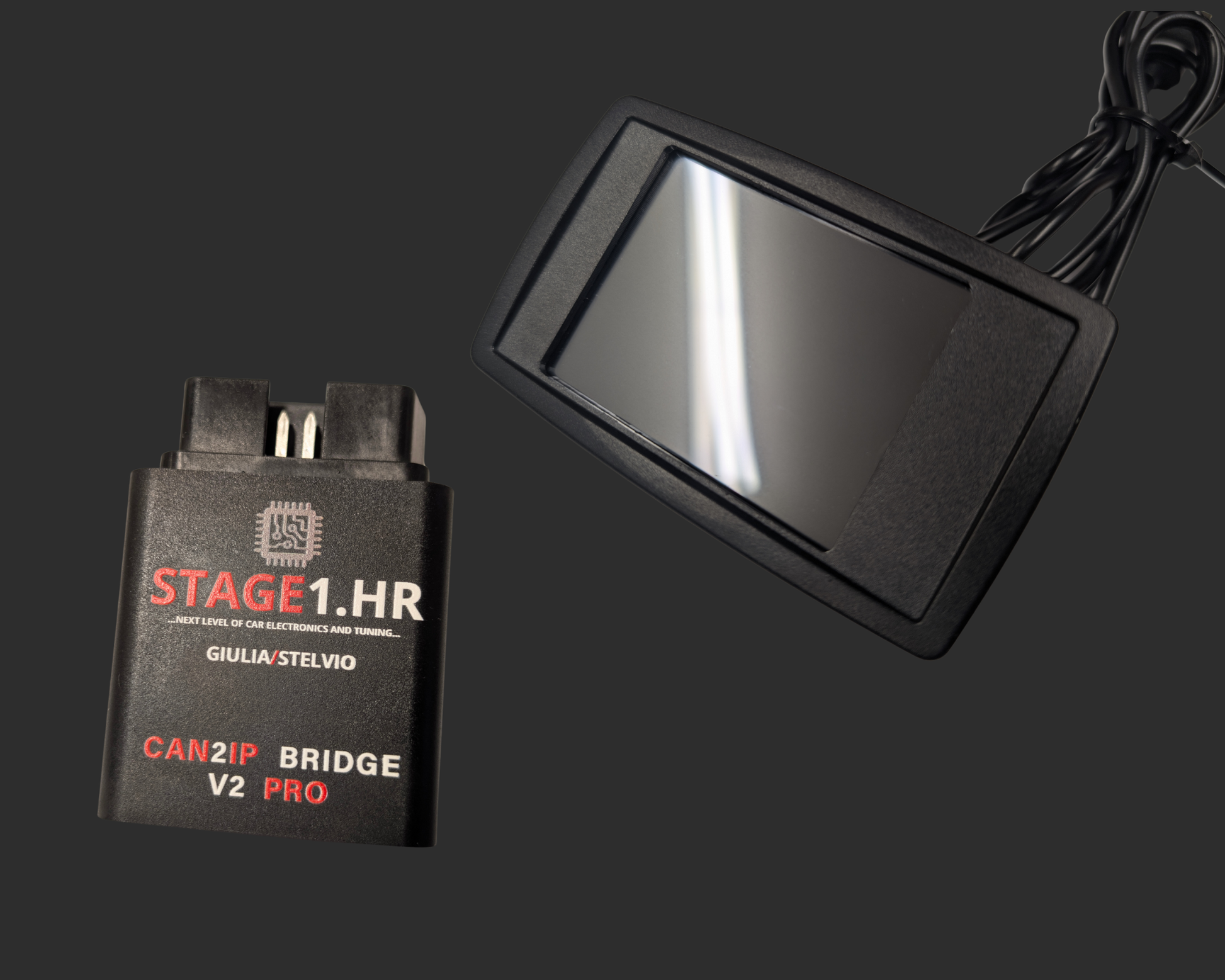

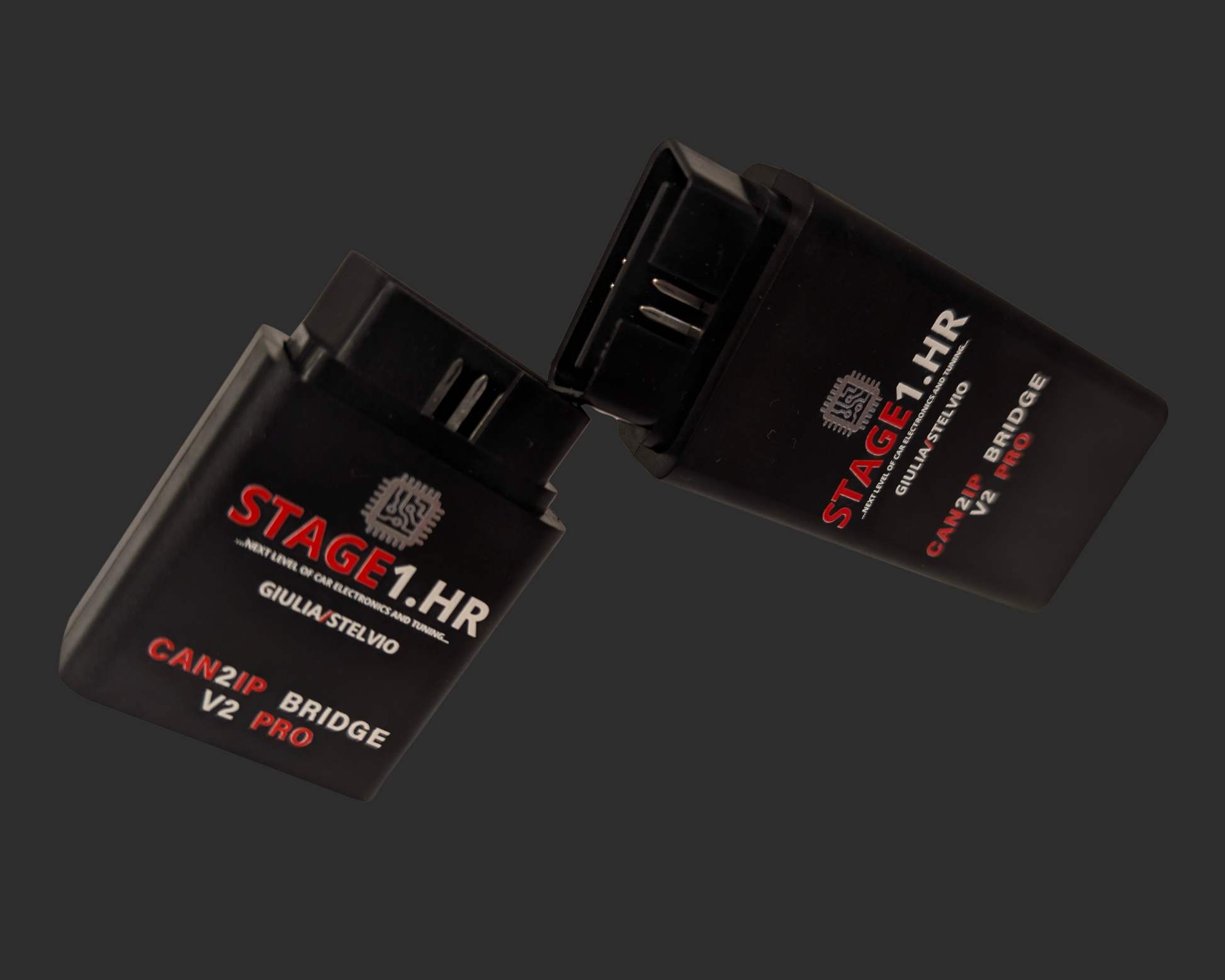

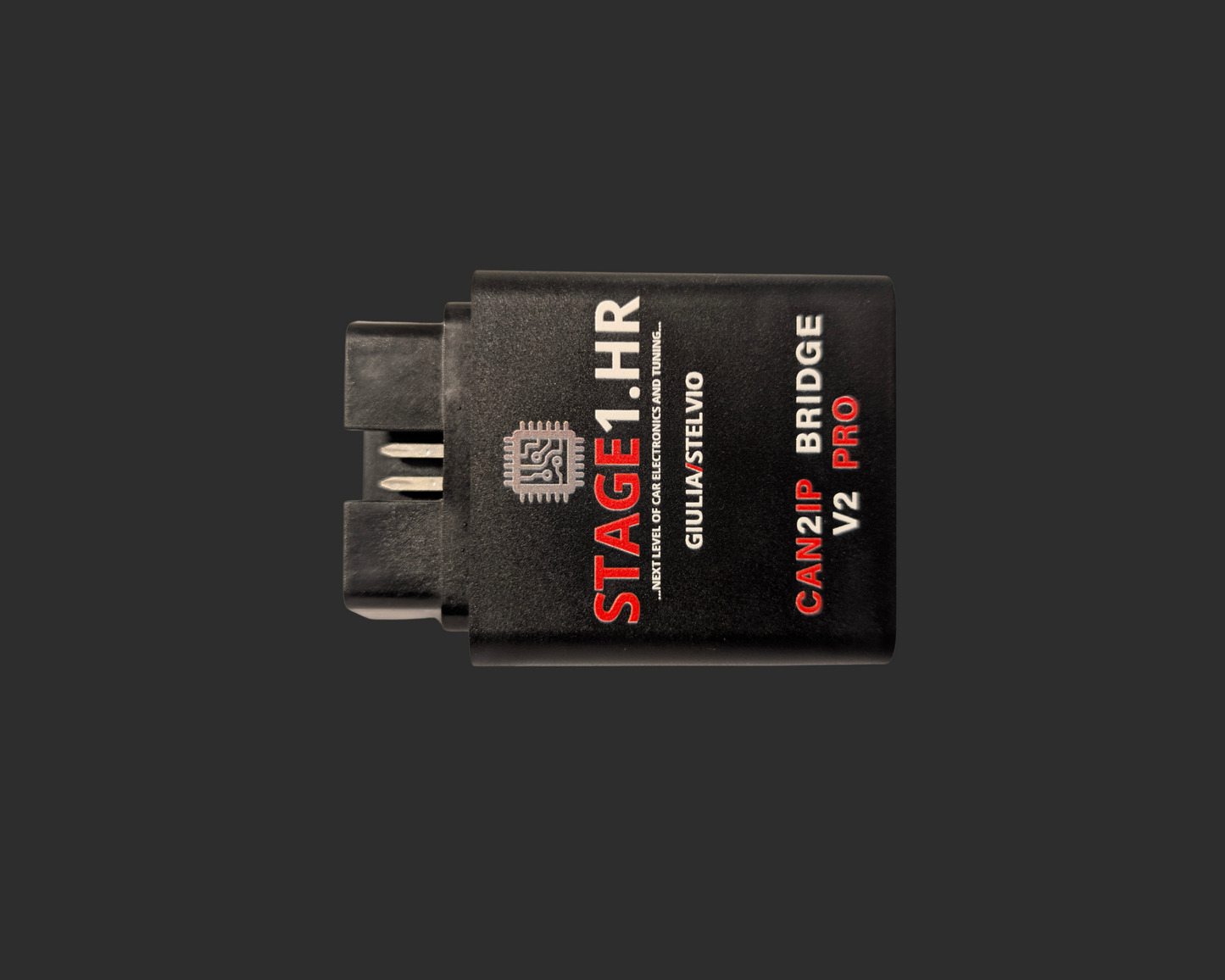

OBD2 CAN2IP V2

OBD2 CAN2IP V2

€249,00 EUR
€249,00 EUR
Sale Sold out
Shipping calculated at checkout.
Device Version
Additional things for the device

UPGRADE - V1 TO V2

Here you can purchase an upgrade for all previous versions from version V1 to V2.

Previous versions: LITE - PRO - PRO MINI

UPGRADE - V1 TO V2

FREE DHL DELIVERY ABOVE 249€

If the total price is 249€ or higher.
Then the delivery is free and sent by DHL Express the next working day.

SHIPPING

DHL Express - 17€

Average delivery time 2 - 4 working days for countries within the EU

--------------------------------------------------------------------------

GLS - 5€

Average delivery time 5 - 12 working days for countries within the EU

--------------------------------------------------------------------------


- If you place your order on a working day by 1:00 PM from Monday to Friday, the order will be shipped the next day. If you order after 1:00 PM, the package will be shipped the day after tomorrow.

- All orders placed on non-working days or holidays are shipped the next working day.

- Shipment status and tracking numbers are sent immediately when the courier picks up the package.




IMPORTANT INFORMATION BEFORE USING THE DEVICE

HOW TO UPDATE DEVICE

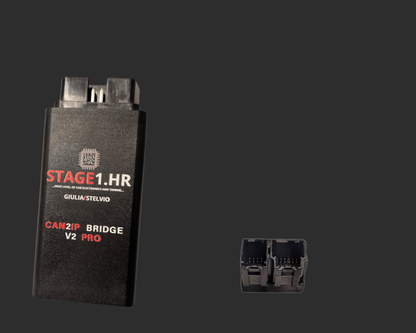

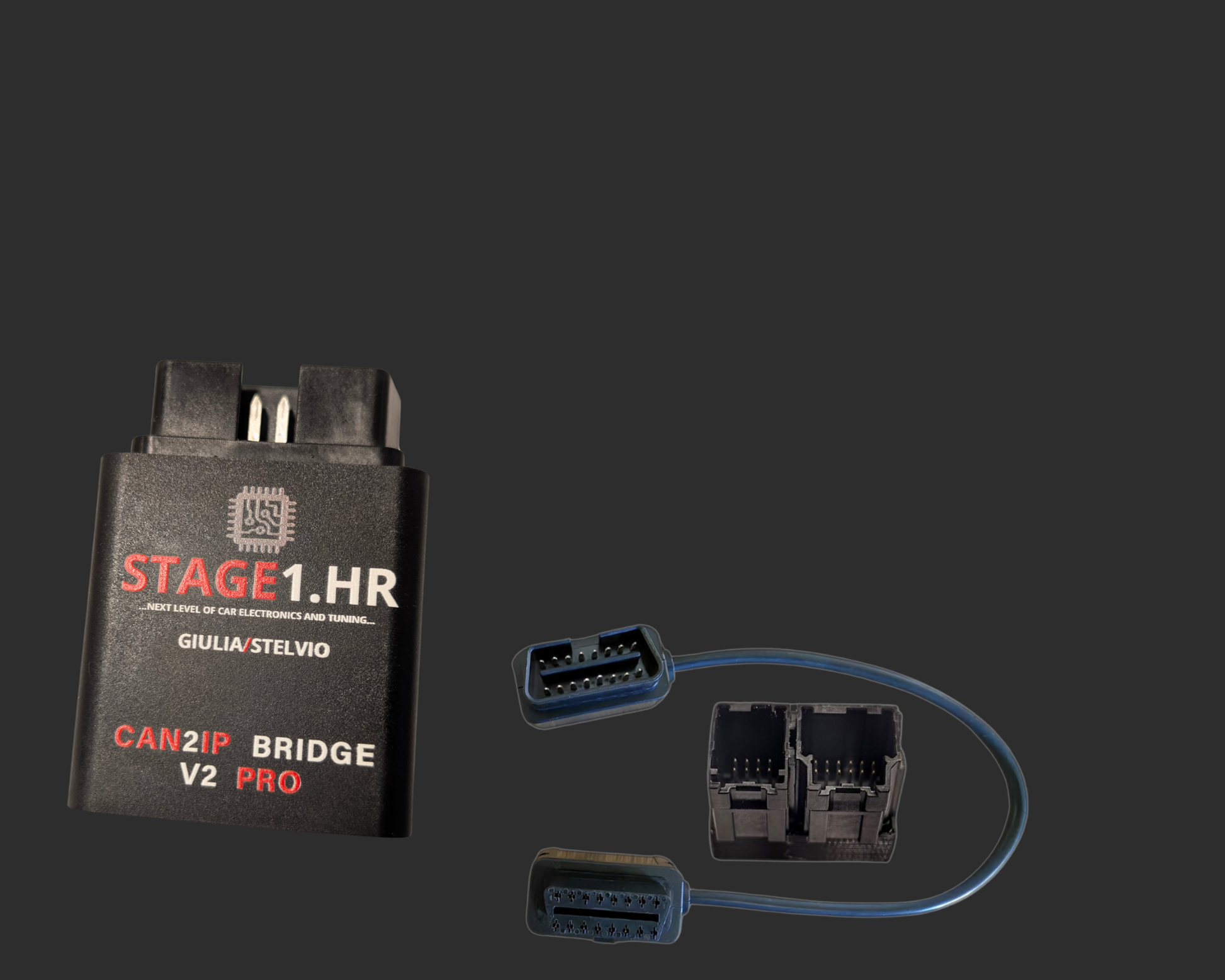

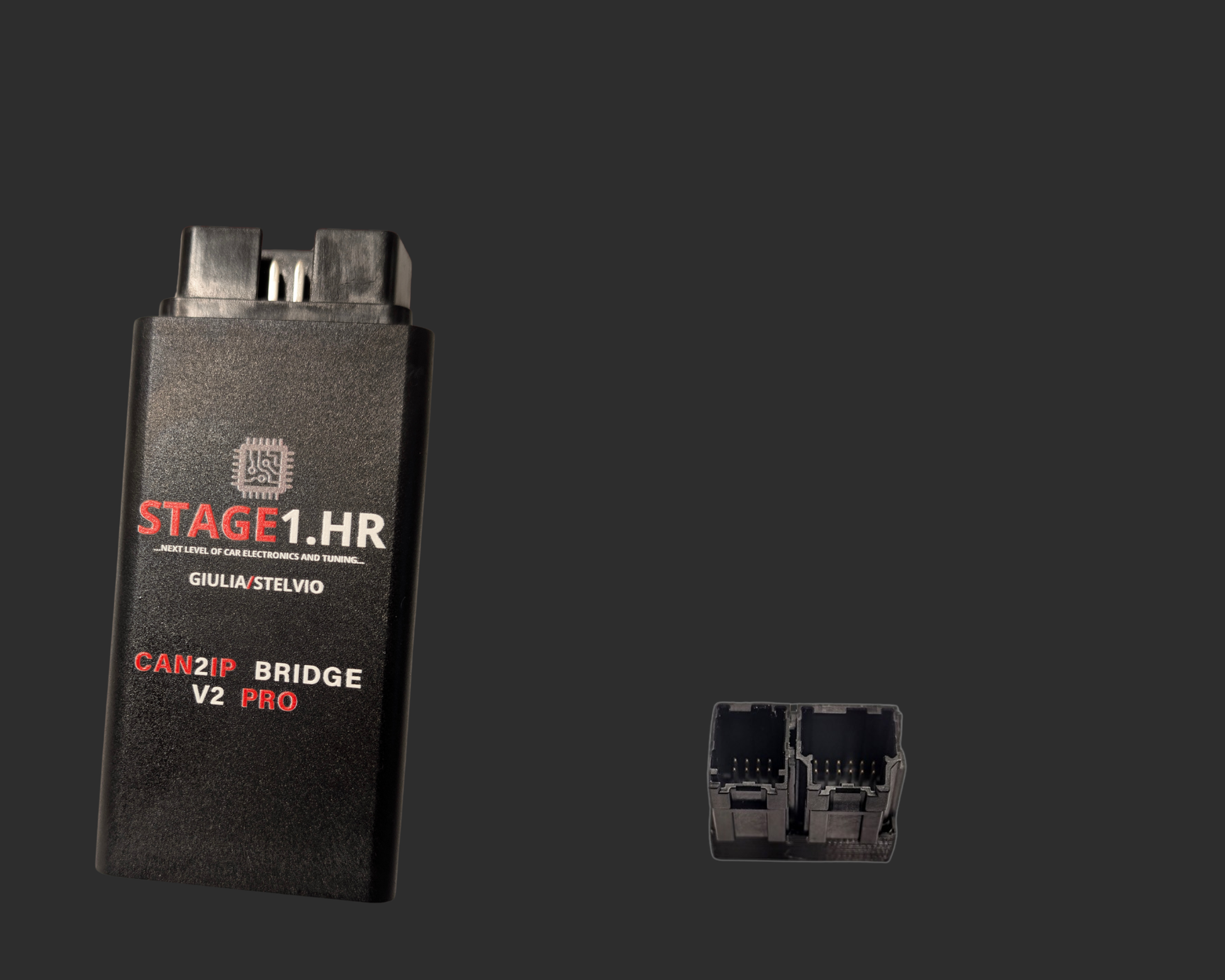

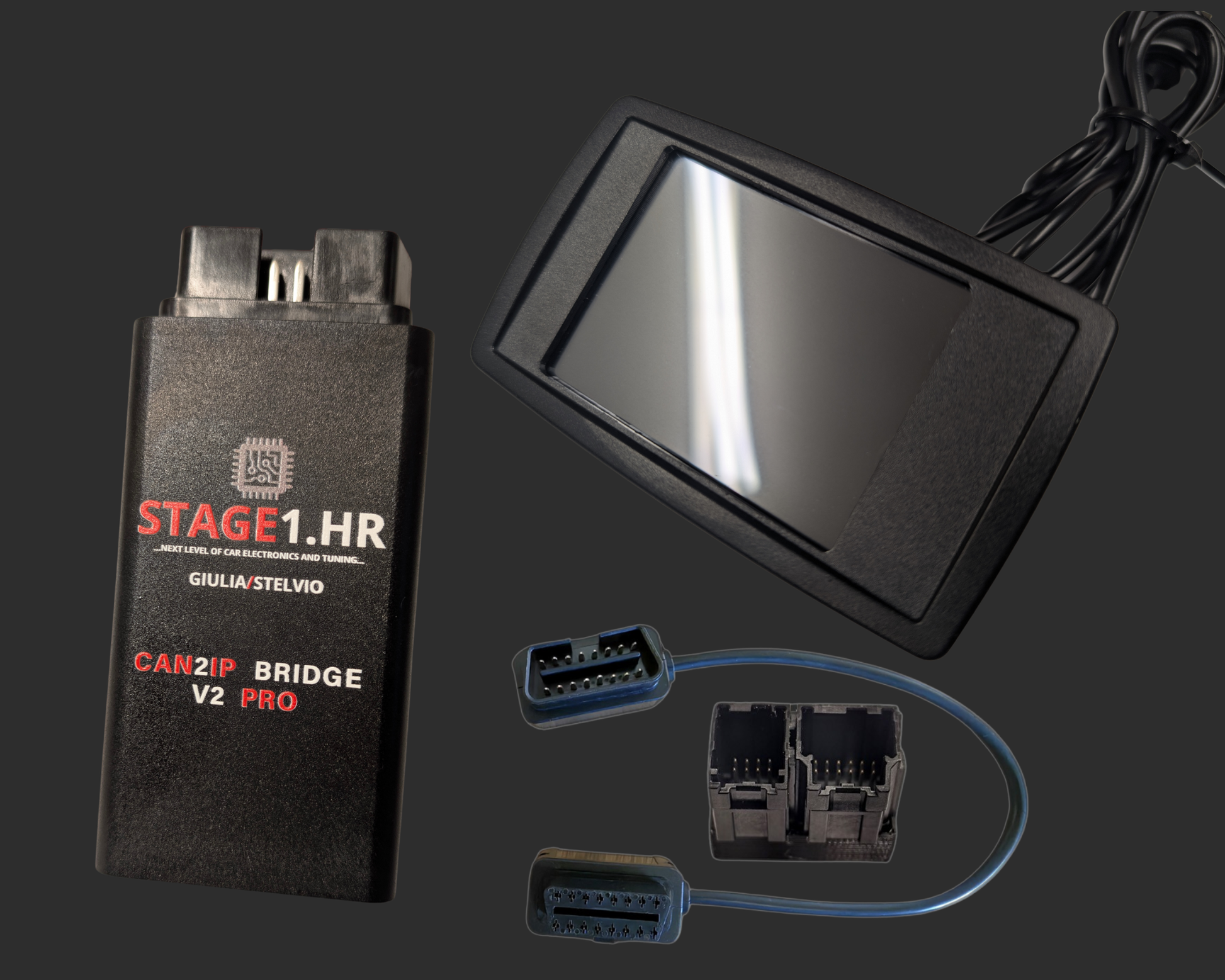

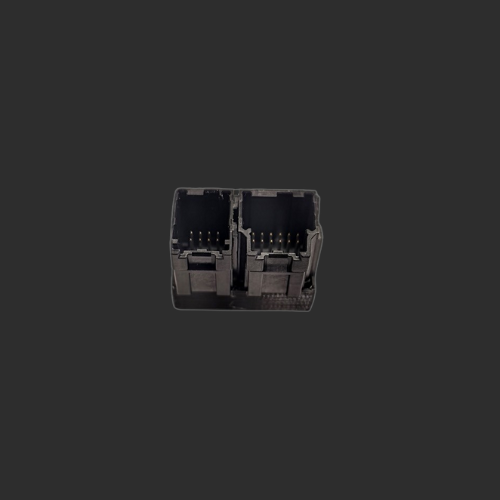

HOW TO INSTALL SGW BYPASS



NOTE: CAN2IP bridge device does not work if SGW is installed in the car! In this case, you can install SGW bypass.

Does my car have SGW?
- All cars manufactured after 02/2018 should have SGW installed

This is our new device with the new V2 firmware.

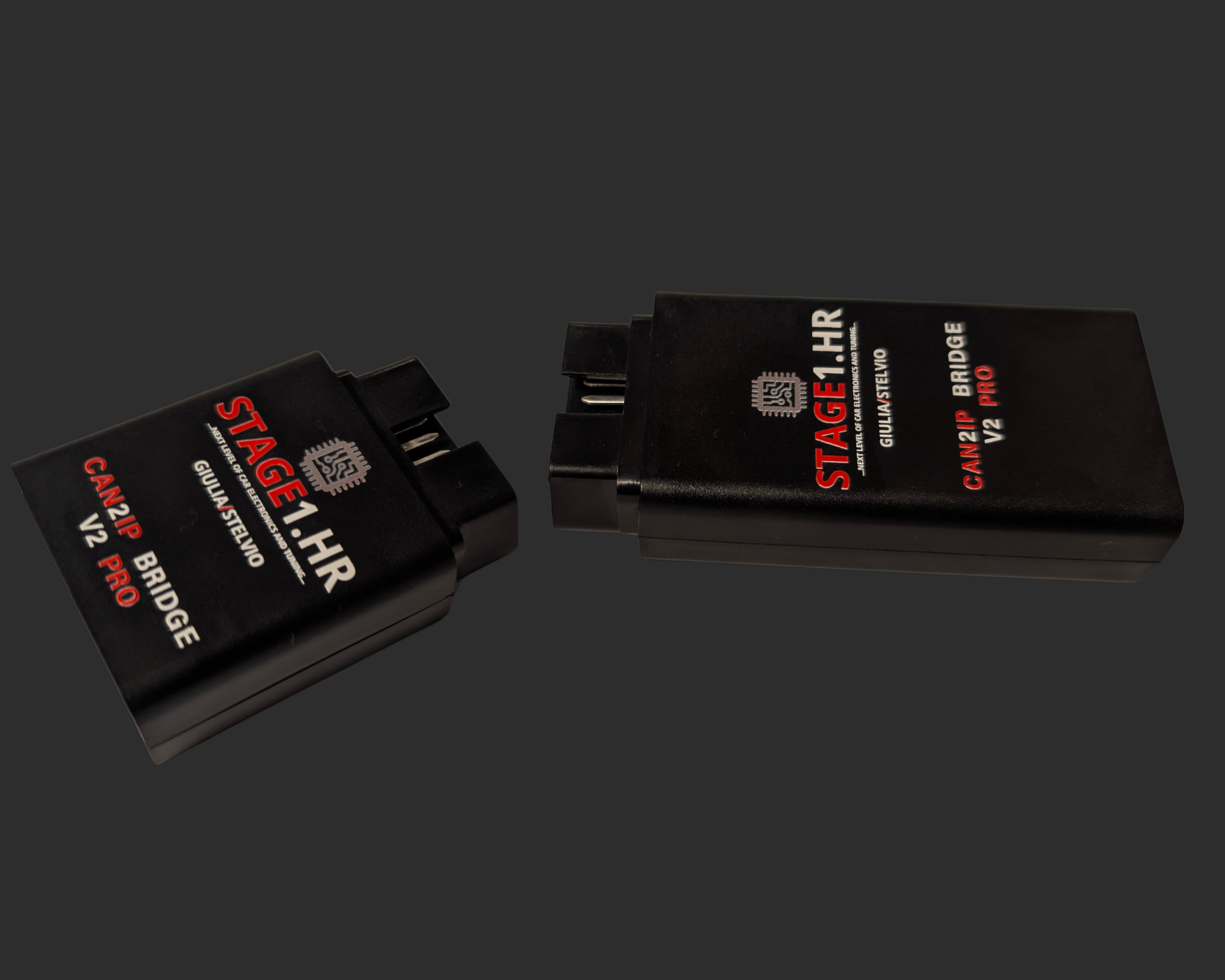

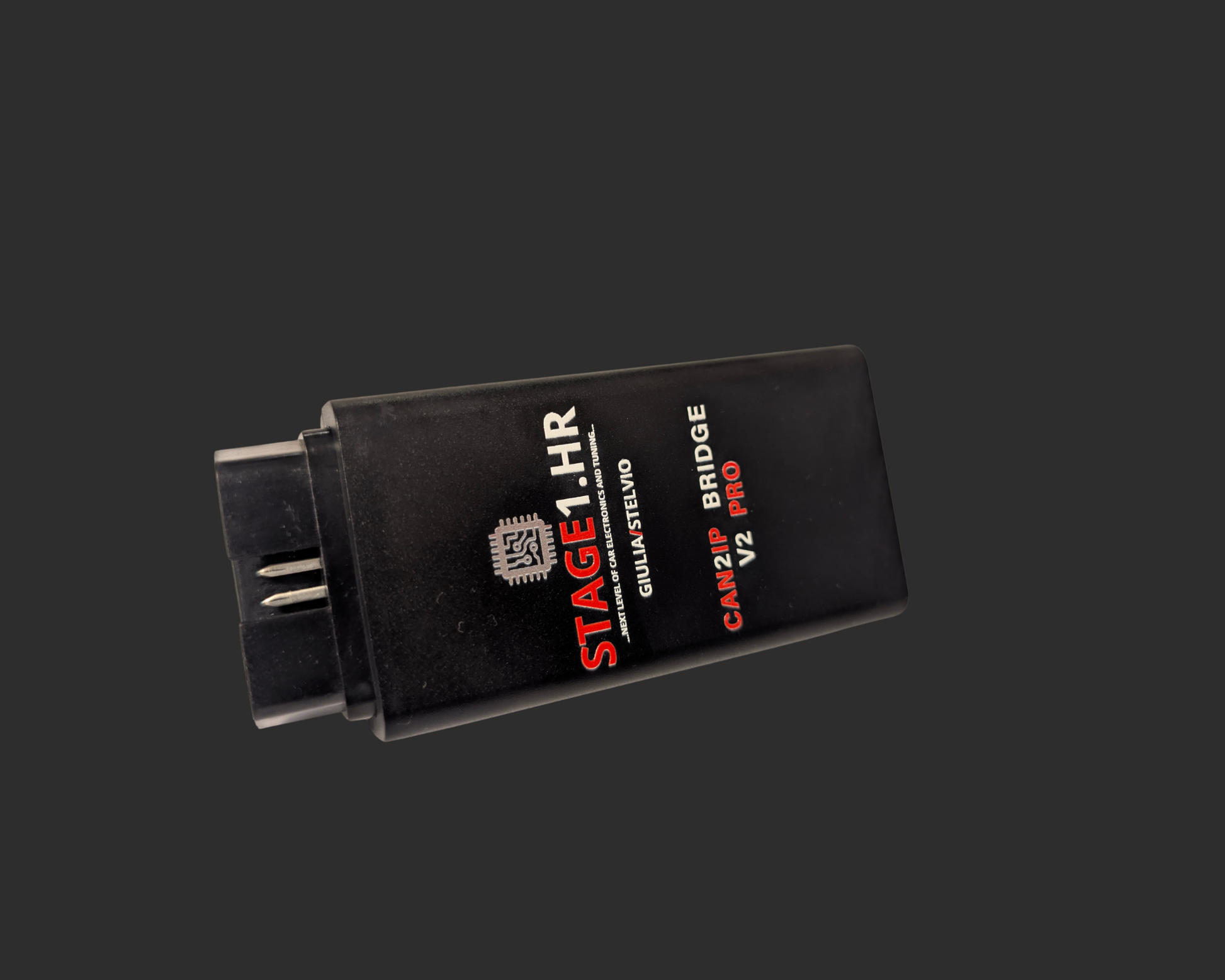

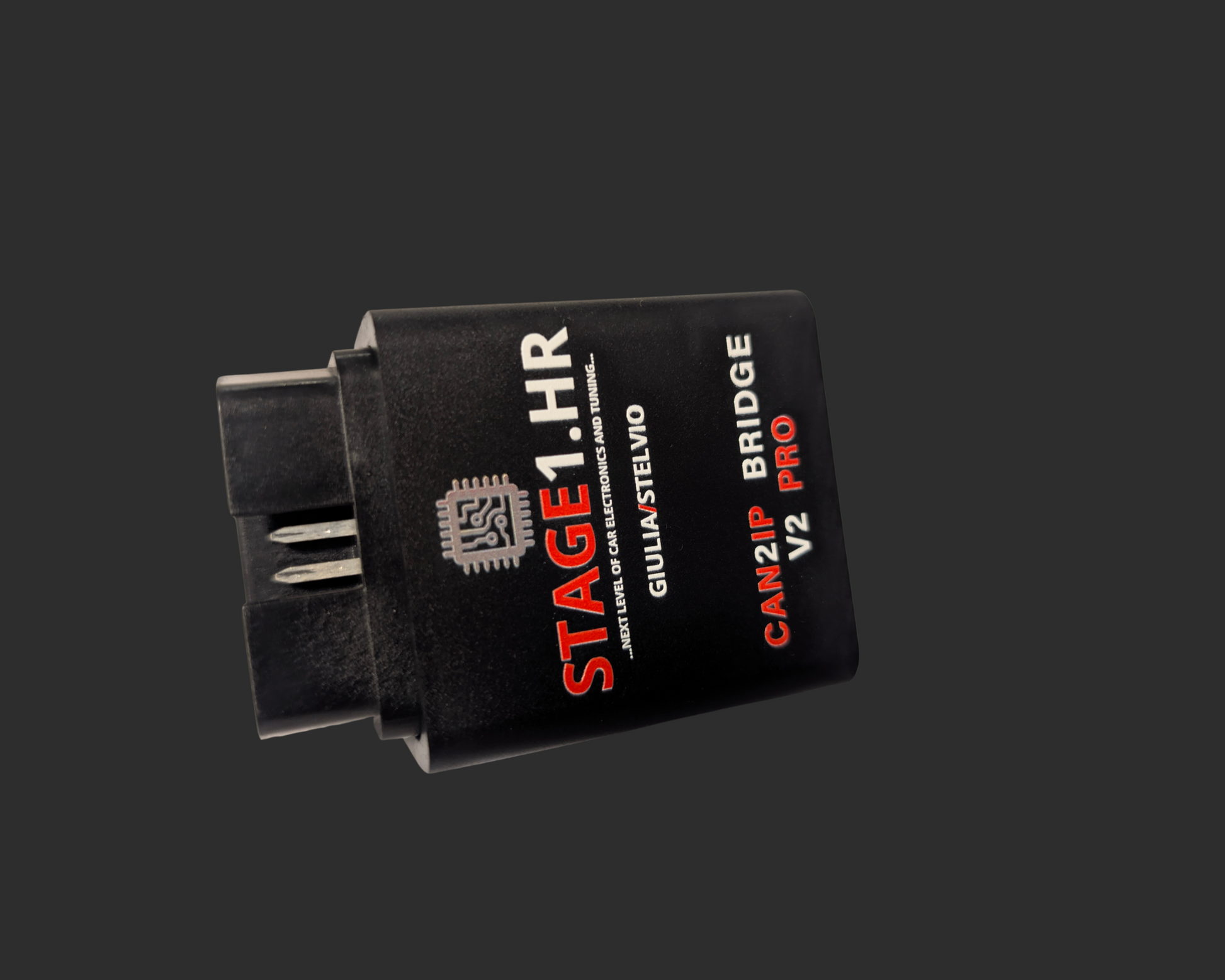

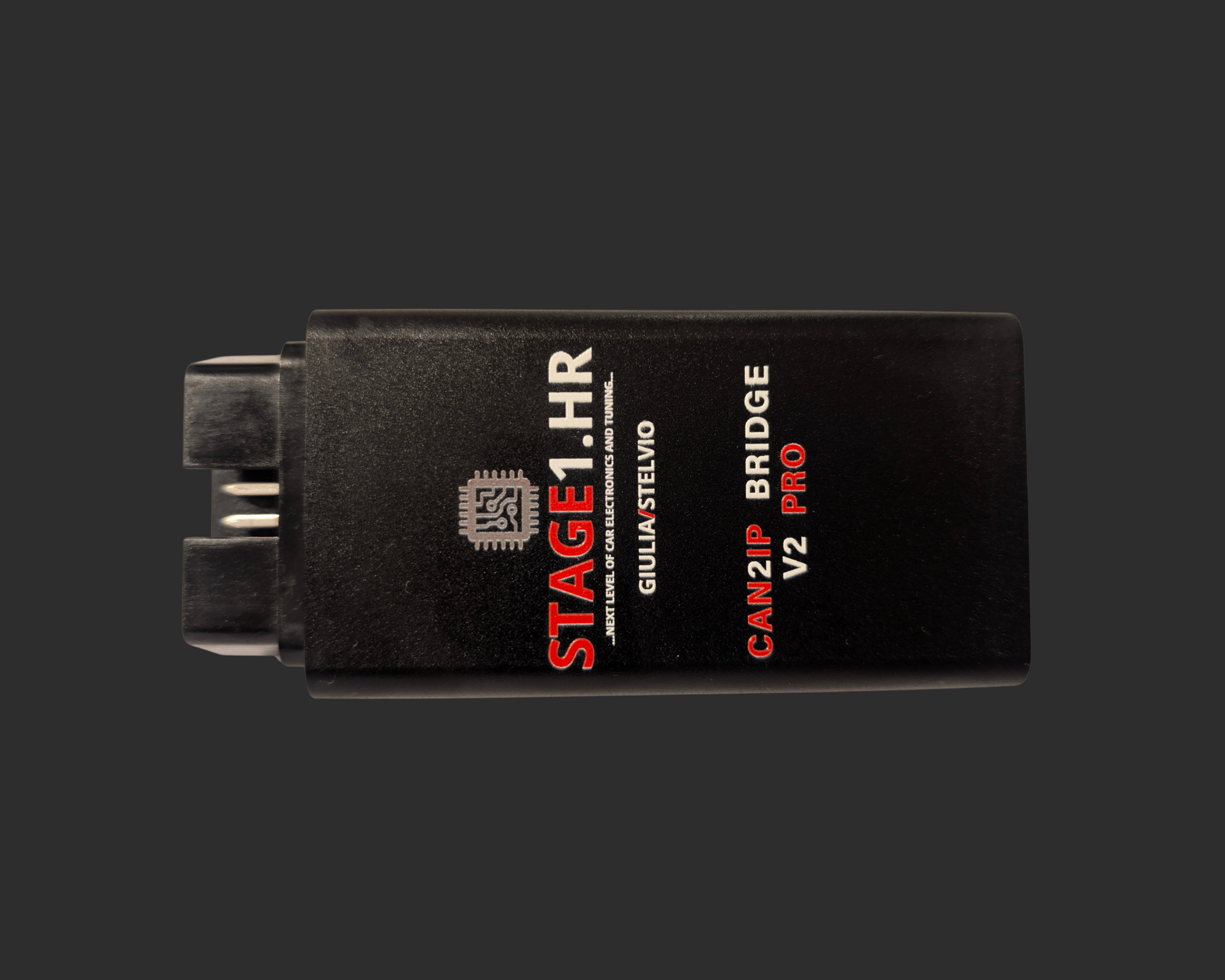

The OBD2 CAN2IP V2 is an advanced diagnostic tool designed specifically for Giulia or Stelvio vehicles.

It provides seamless CAN bus data transmission over IP, enabling expert-level monitoring and troubleshooting.

This device enhances your ability to diagnose issues quickly and accurately, ensuring optimized vehicle performance and reduced downtime.

Compact, reliable, and easy to install, it is an essential accessory for professional diagnostics on your Alfa Romeo Giulia or Stelvio.





It has a lot of features and functionality compared to the older version.

Below you can download a short guide about the device so you can understand what the device can do and what information is available on it.

There are a lot of options so take your time and read the instructions :)



These are the instructions:

CAN2IP_bridge_V2_quick_guide.pdf





These are custom pids for external application TORQUE and CAR SCANNER.

You can download them and import them into the application.

CarScanner_CAN2IP_V2_custom_PIDs.csp

Torque_CAN2IP_V2_custom_PIDs.csp









Available values ​​to display


# NAME DESCRIPTION/NOTES APPLICABLE USER NOTE
1 Select available values
n/a Engine oil temp and pressure Engine oil temperature, oil   pressure and oil pump request state (LP/HP1-HP6). Oil temperature value is   shown regarding oil temperature source selected in parameter 5.8 Main oil temperature display source.
     Display format: OIL   100.0°/2.5b HP6		 2.0/2.2 FIXED: 0
1.1 AC gas pressure Air condition gas pressure,   compressor status (compressor ON=*) and position of expansion valve.
     Display format: AC P/V   10.1b*/31%		 2.0/2.2
1.2 Atmospheric pressure Atmospheric pressure.
     Display format: ATMO PRESS   1.002b		 2.0/2.2
1.3 Battery voltage @ BCM Battery voltage measured at   BCM.
     Display format: BAT 14.4V		 2.0/2.2
1.4 Battery voltage @ OBD port Battery voltage measured at OBD   port.
     Display format: BAT OBD   14.4V		 2.0/2.2
1.5 Battery IBS SOC Battery IBS State Of   Charge.
     Display format: IBS BAT SOC   70%		 2.0/2.2
1.6 CAT temperature before Exhaust gas temperature before   catalyst.
     Display format: CAT TEMP   543.1°		 2.0/2.2
1.7 Cabin air quality Cabin air quality.
     Display format: CAB AIR QUAL   75%		 2.0/2.2
1.8 Cabin sun insolation Sun insolation on left and right   side of cabin.
     Display format: CAB INSO   550|530W		 2.0/2.2
1.9 Cabin temperature/humidity Cabin air temperature and   relative humidity.
     Display format: CABIN   29°/54%RH		 2.0/2.2
1.10 Cabin L/R exhaust temperature Cabin air temperatures at   left|right ventilation exhaust
     Display format: CABIN EXH   29°|29°		 2.0/2.2
1.11 Coil charge time cyl 1-4 Coil charge time cyl 1-4.
     Display format: 2.1|2.1|2.1|2.1		 2.0
1.12 CommonRail fuel quantity Common rail fuel quantity:   current/desired.
     Display format: CRFQ   13.4/13.3mm3		 2.2
1.13 CommonRail injection correction cyl 1-4 Common rail fuel injection   correction for cylinder 1-4 [mm3]. Shows info on paging: "CR inj. corr.   mm3"
     Display format: 2.1|2.2|2.1|2.0		 2.2
1.14 CommonRail injection MAIN advance/fuel quantity Common rail fuel advance/fuel   quantity for MAIN injection.
     Display format: CRAF   2.14/8.23mm3		 2.2
1.15 CommonRail injection MAIN time Common rail timing for MAIN   injection.
     Display format: CR TIME   0.354ms		 2.2
1.16 DPF parameters* (with additional info) DPF parameters:
     PAGE 1: DPF clog status. Display format: DPF CLOG 83.1%     PAGE 1 (when regen in process): DPF clog/regen status. Display format: DPF 99.1/45%     PAGE 2: DPF total regen cycles. Display format: TOTAL   REGEN 1253x     PAGE 3: DPF mileage from last DPF regen. Display format: REGEN 346km ago		 2.2
1.17 DPF differential pressure DPF differential pressure.
     Display format: DPF DIF P   0.017b		 2.2
1.18 DPF temperature before/after Exhaust gas temperature   before/after DPF.
     Display format: DPF TEMP   276/275°		 2.2
1.19 EGR HP parameters EGR HP (High Pressure)   temperature, current position and desired position.
     Display format: EGRH 98°   13/13%		 2.2
1.20 EGR LP parameters EGR LP (Low Pressure)   temperature, current position and desired position.
     Display format: EGRL 47°   2/2mm		 2.2
1.21 Electronic thermostat position Electronic thermostat   position.
     Display format: THERMOSTAT   34.9%		 2.0
1.22 Engine coolant temperature Engine coolant   temperature.
     Display format: ENGINE T   92.0°		 2.0/2.2
1.23 Engine oil degradation Engine oil degradation.
     Display format: OIL DEGRADED   99%		 2.0/2.2
1.24 Engine oil level* (with additional info) Engine oil level   parameters:
     PAGE 1: oil level in mm. Display format: OIL LEVEL   75.2mm     PAGE 2: oi level visual display. Display format: ########ooooooooo     PAGE 3: date of last level change. Display format: SYNC 21.08.2025     PAGE 4: time and mileage of last level change. Display format: 12:25 @ 175231km
          NOTES:
     - if oil level is at the minimum or below, message # MIN OIL LEVEL # is shown
     - if oil level is at the maximum or above, message # MAX OIL LEVEL # is shown		 2.0/2.2
1.25 Engine oil level l Engine oil level in liters. *     Display format: OIL   LEVEL 4.63l 2.0
1.26 Engine oil pressure Engine oil pressure reded by   PID. *     Display format: OIL   PRESSURE 2.5b 2.0/2.2
1.27 Engine oil pump Engine oil pump pressure request   OFF/LP/HP1-HP6.
     Display format: OIL PUMP REQ   HP2		 2.0/2.2
1.28 Engine oil temperature Engine oil temperature. *     Display format: OIL   TEMP 100° 2.0
1.29 Engine oil temperature @ sump Engine oil temperature measured   at oil sump, reded by PID. *     Display format: OIL T   @ SUMP 98° 2.2
1.30 Engine RPM Engine RPM.
     Display format: RPM 1250		 2.0/2.2
1.31 Exhaust gas temperature Exhaust gas temperature.
     Display format: EXHAUST GAS   220°		 2.0
1.32 Fuel consumption Fuel consumption.
     Display format: FUEL CONS   1.24l/h		 2.0/2.2
1.33 Fuel level Fuel level in % and liters   (regarding parameter 3.7 Fuel tank capacity).     Display format: FUEL   50%/29.11l 2.0/2.2
1.34 Fuel pressure Fuel pressure.
     Display format: FUEL PRESS   52.5b		 2.0
1.35 Fuel pressure + desired pressure Fuel pressure   current/desired.
     Display format: FUEL P   1250/1250b		 2.2
1.36 Fuel pressure regulator Fuel pressure regulator   position.
     Display format: FUEL PREG   42.11%		 2.2
1.37 Fuel pump control Fuel pump regulator   position.
     Display format: FUEL PUMP   26.55%		 2.2
1.38 Fuel temperature Fuel temperature.
     Display format: FUEL TEMP   28.1°		 2.2
1.39 Gearbox MODE/GEAR Gear mode/engaged gear. *     Display format: GEAR   MODE D5
     Display format in manual mode: GEAR MODE M6->M7 (current engaged   gear and suggested gear)		 2.0/2.2
1.40 Gearbox oil temperature AT8 gearbox oil temperature. *     Display format: GEARBOX   T 78.1° 2.0/2.2
1.41 Gearbox torque* (with additional info) AT8 gearbox torque:
     PAGE 1: torque. Display format: TORQUE AT8 125Nm     PAGE 2: torque/HP. Display format: TORQ   125Nm/112HP     PAGE 3: torque/kW. Display format: TORQ   125Nm/82kW		 2.0/2.2
1.42 Gearbox torque actual/max AT8 gearbox torque actual/max. *     Display format: TORQUE   125/550Nm 2.0/2.2
1.43 Glow plugs control Glow plugs request.
     Display format: GLOW PLUGS   34.1%		 2.2
1.44 IAH Intake Air Humidity Intake Air Humidity.
     Display format: IAH 33.1%		 2.0
1.45 IAP Intake Air Pressures Intake Air Pressure.
     Display format: IAP   1.211/1.222b		 2.0
1.46 IAQ Intake Air Quantities Intake Air Quantities   current/desired.
     Display format: IAQ   354/356mg		 2.2
1.47 IAQ Intake Air Quantities Intake Air Quantities.
     Display format: IAQ 10.5kg/h		 2.0
1.48 IAT Intake Air Temperatures Intake Air Temperatures: = MAF =   AFTER WCAC = MANIFOLD.
     Display format: IAT   =24=26=48°
     Display format: IAT   =24====48° (without WCAC)		 2.2
1.49 IAT Intake Air Temperatures Intake Air Temperatures: = MAF =   MANIFOLD.
     Display format: IAT =24=48°		 2.0
1.50 IEF Intake Efficiency IEF Intake Efficiency.
     Display format: IEF 33.1%		 2.0
1.51 Injection time/correction Injection time/correction.
     Display format: ITC   9.999/9.999ms		 2.0
1.52 Lambda O2 concentration Lambda probe O2   concentration.
     Display format: LAMBDA O2   14.22%		 2.0
1.53 Lambda O2 concentration before/after Lambda probe O2 concentration   before/after cat.
     Display format: L O2   24.1/1.1%		 2.2
1.54 Lambda temperature intake Lambda temperature intake.
     Display format: LAMBDA TEMP   500°		 2.0
1.55 NOx before/after % Nox before/after storage   catalyst.
     Display format: NOx   12.1/0.1%		 2.2
1.56 NOx before/after ppm Nox before/after storage   catalyst.
     Display format: NOx   3.2/0.1ppm		 2.2
1.57 SCR consumption l/100km SCR (AdBlue) consumption   calculated by ECU.
     Display format: SCR   0.2345l/100km		 2.2
1.58 SCR level and status* (with additional info) SCR (AdBlue) information:
     PAGE 1: SCR level. Display format: SCR 100%/10.96l     PAGE 2: SCR spent. Display format: SCR SPENT   5.88l     PAGE 3: SCR range left. Display format: SCR   RANGE 8826km		 2.2
1.59 SCR quality SCR (AdBlue) quality calculated   by ECU.
     Display format: SCR QUAL   34.0%		 2.2
1.60 SCR temperature SCR (AdBlue) temperature.
     Display format: SCR TEMP   18.0°		 2.2
1.61 Spark advance Spark advance.
     Display format: SPARK ADV   9.99deg		 2.0
1.62 Speed Vehicle speed.
     Display format: SPEED 115		 2.0/2.2
1.63 Throttle Throttle pedal position.
     Display format: THROTTLE   12.0%		 2.0/2.2
1.64 Throttle valve Throttle valve position.
     Display format: THROTTLE VAL   25%		 2.0/2.2
1.65 TPMS tire temp + pressure* (with additional info) TPMS tire temperature and   pressure:
     PAGE 1: FL|FR RL|RR pressure. Display format: 2.4|2.4b   2.5|2.5b     PAGE 2: FL|FR RL|RR temperature. Display format: 40°|40°   38°|38°		 2.0/2.2
1.66 Turbo boost Turbo boost pressure   current/desired.
     Display format: TURBO P   1.2/1.2b		 2.0/2.2
1.67 Turbo control Turbo control position   current/desired.
     Display format: TURBO RQ   98/98%		 2.2
1.68 Turbo temperature Turbo temperature.
     Display format: TURBO TEMP   513.1°		 2.2
1.69 UniAir temperature UniAir temperature.
     Display format: UNIAIR TEMP   102°		 2.0
1.70 UniAir temperature valve UniAir temperature valve.
     Display format: UNIAIR TEMPV   102°		 2.0
1.71 WCAC LT water temperature WCAC (Water Charge Air Cooling)   intercooler water temperature. *     Display format: WCAC   TEMP 39.1° 2.2
* Available only on some   models of vehicle. Primary related to equipment, MY etc.…
