NOTE: CAN2IP bridge device does not work if SGW is installed in the car! In this case, you can install SGW bypass.

Does my car have SGW?
- All cars manufactured after 02/2018 should have SGW installed

- simple installation
- simple WiFi update for all future new versions (using mobile HotSpot)
- the possibility of "custom" FW at the user's request
- CAN2IP bridge is compatible with 7" and 3.5" InstrumentPanel screens
- automatic "sleep" mode
- low consumption

----------------------------------------------------------------------------

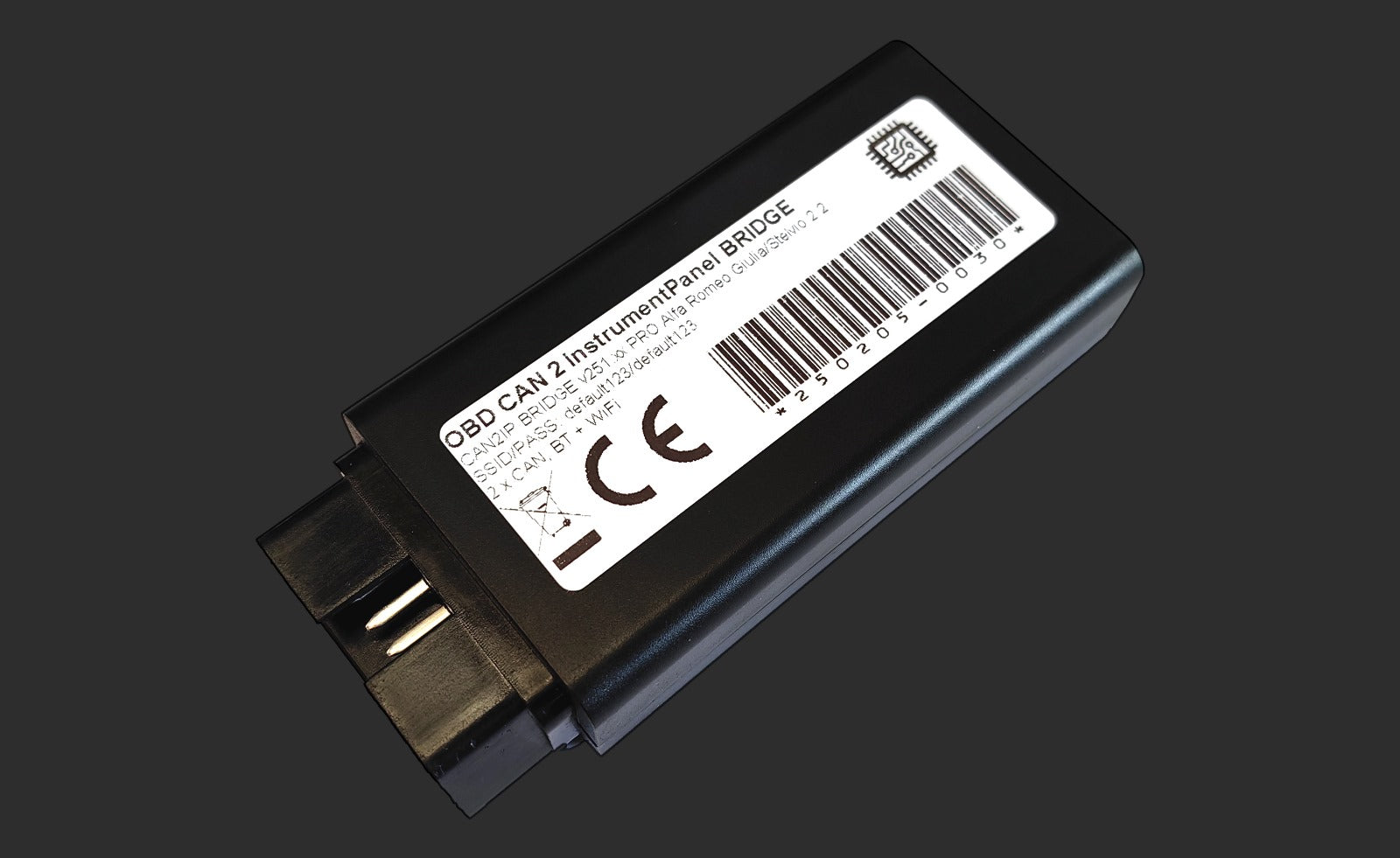

CAN2IP bridge PRO
- ABS max DC input voltage 36.3V
- DC input voltage 10-16V
- OBD 12V DC pin reading tolerance <=2%
- DC Current (with BT) <=100mA (@12VDC input voltage)
- DC Current (without BT) 55-65mA (@12VDC input voltage)
- DC Current (sleep mode) <=15mA (@12VDC input voltage)
- Dimensions 100x48x24mm

----------------------------------------------------------------------------

• engine oil temperature [°C]
• engine oil pressure [bar]
• engine coolant temperature [°C]
• DPF status - clogging [%]
• DPF status - regeneration [%]
• DPF temperature [°C]
• TURBO temperature [°C]
• AT8 gearbox oil temperature [°C]
• engine oil degradation [%]
• turbo boost [bar]
• turbo boost bar graph
• torque (real torque at AT8) [Nm]
• accelerator pedal position [%]
• AT8 mode: P/D/M - AT8 gear: R/N/1/2/3/4/5/6/7/8
• cabin temperature [°C]
• engine speed [rpm]
• battery voltage [V]
• battery voltage OBD [V]

----------------------------------------------------------------------------
